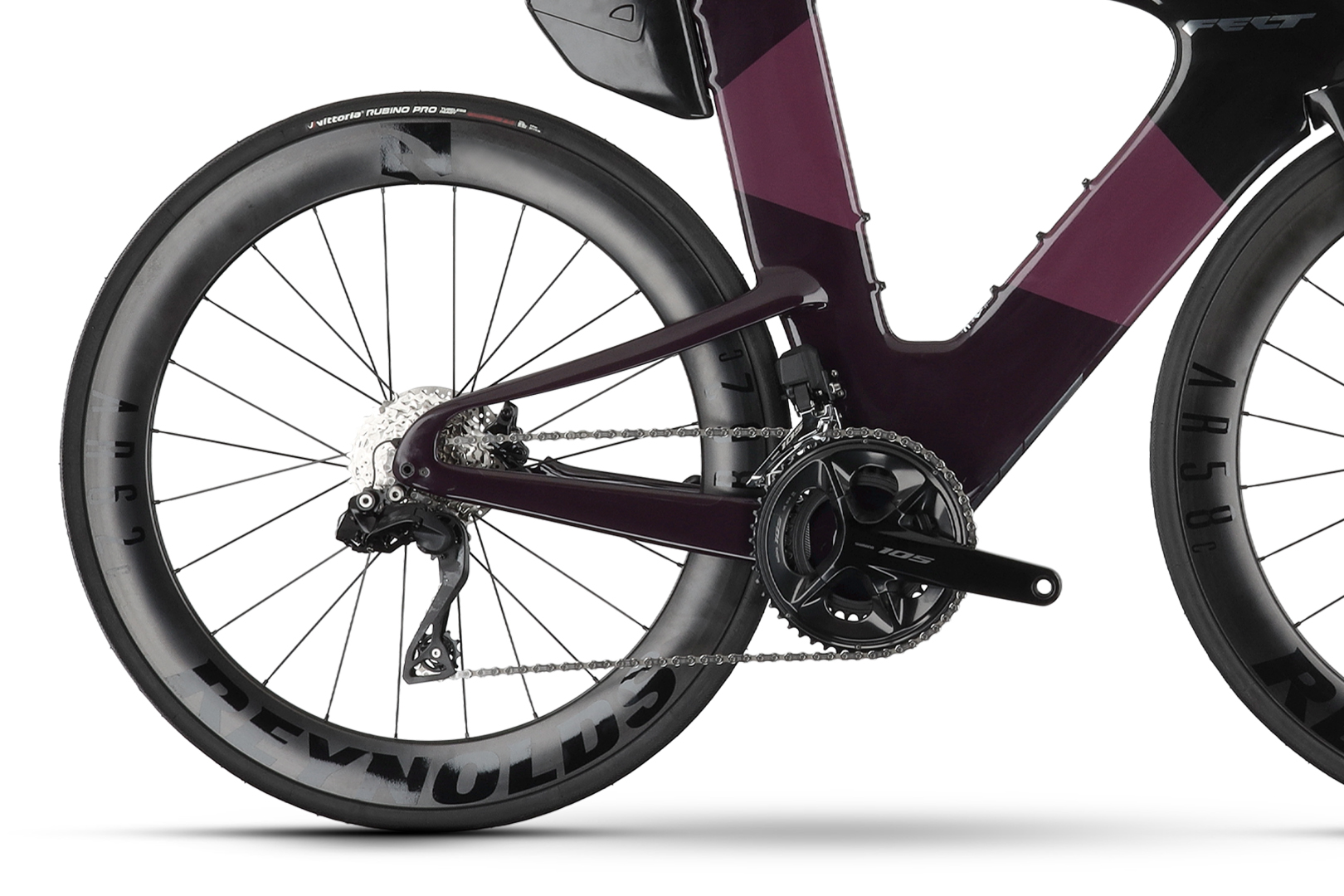

IAx | Advanced | 105 Di2

EUR 5,499.00MSRP (incl. tax)

Compare

Set a new standard for your speed and performance. The IAx with 105 Di2 brings you into the fast lane. PRs and podiums await.

Colours

Astral

Sizes

48

51

54

56

58

Calculate size

Dealer Search

Get out and go

We have updated the IA to become the IAx. By eliminating the frame/fork nose cone and outgoing one-piece front end we provide more fit options across a wider range of athlete levels. Still a race-ready set-up, the IAx now offers the advantages of a streamlined and simplified design to make bike set-up easier and to keep things simple with overall maintenance and travel to events.

New electronic shifting

The IAx complete with Shimano's updated 105 Di2 groupset. Quick electronic shifts across the 12-speed range and powerful brakes ensure optimal performance for all levels of rider.

Roll for the win

Attack your competitive goals with the aero advantage of the custom Reynolds AR58/62 DB wheelset and Continental Grand Prix SL tires combination. With great handling characteristics and a wind-cheating set-up, you'll see your PR's rack up.

A fitter's friend

Dial-in your riding position with an easy-to-adjust set up on your front end. The aluminum stem, base bar, and extensions offer individual adjustments to get your best riding position.

Frameset

FrameFelt IAx 1.0, UHC Advanced
ForkFelt IAx 1.0, UHC Advanced

Brakes & Drivetrain

Front brakeTRP HD-T910, 2-piston, Hydraulic disc brake
Front brake rotorTRP TR25, 140 mm, Center lock
Rear brakeTRP HD-T910, 2-piston, Hydraulic disc brake
Rear brake rotorTRP TR25, 140 mm, Center lock
Rear derailleurShimano 105 Di2, RD-R7150, 24-S
front derailleurShimano 105 Di2, FD-R7150
CassetteShimano 105 CS-R7100, 11-34 T
ChainShimano CN-M7100
CranksetShimano 105, FC-R7100, 50/34 T
Shift leverTRP HD-T910D

Wheels

WheelsetReynolds AR58/62 DB Custom, Tubeless ready
TireContinental Grand Prix SL, 700x25

Cockpit

HandlebarBasebar: Devox Bayonet 3.1 | SuperLite aluminum / Extensions: Devox Ergomod | aluminum
SaddleISM PS1.0, Satin Steel
Seat postFelt Aero TRI IL 1.0 VM

Additional Information

Permissible total weight129kg
Trailer approvalNo trailer approval

Specifications may change depending on supply of parts to our factory. Please contact your local dealer for exact specifications of their stock.

	47	48	51	54	56	58
Rider Height	152.4 - 167.6 cm 5’0” - 5’5”	152.4 - 167.6 cm 5’0” - 5’5”	167.6 - 172.7 cm 5’5” - 5’8”	172.7 - 180.3 cm 5’8” - 5’11”	180.3 - 187.9 cm 5’11” - 6’2”	187.9 - 195.5 cm 6’2” - 6’5”
Rider inseam Measured from crotch to floor.	70.8 - 74.4 cm 27.9” - 29.3”	70.8 - 74.4 cm 27.9” - 29.3”	74.4 - 77.9 cm 29.3” - 30.7”	77.9 - 83.0 cm 30.7” - 32.7”	83.0 - 85.8 cm 32.7” - 33.8”	85.8 - 88.9 cm 32.7” - 35.0”

	48	51	54	56	58
(A) Top Tube Length	467 mm	490 mm	510 mm	538 mm	567 mm
(B) Seat Tube Length	489 mm	512 mm	538 mm	563 mm	586 mm
(C) Seat Tube Angle	79.5 °	79 °	78.5 °	78 °	77.5 °
(D) Head Tube Length	63 mm	86 mm	109 mm	134 mm	157 mm
(E) Steering Angle	71.5 °	71.5 °	72 °	72 °	72 °
(G) Wheel Base	958 mm	980 mm	990 mm	1016 mm	1042 mm
(I) BB-Drop	72 mm	72 mm	72 mm	72 mm	72 mm
(L) Stack	473 mm	495 mm	520 mm	544 mm	566 mm
(M) Reach	378 mm	392 mm	404 mm	421 mm	440 mm
(O) Crank Length	165 mm	165 mm	170 mm	170 mm	172.5 mm
