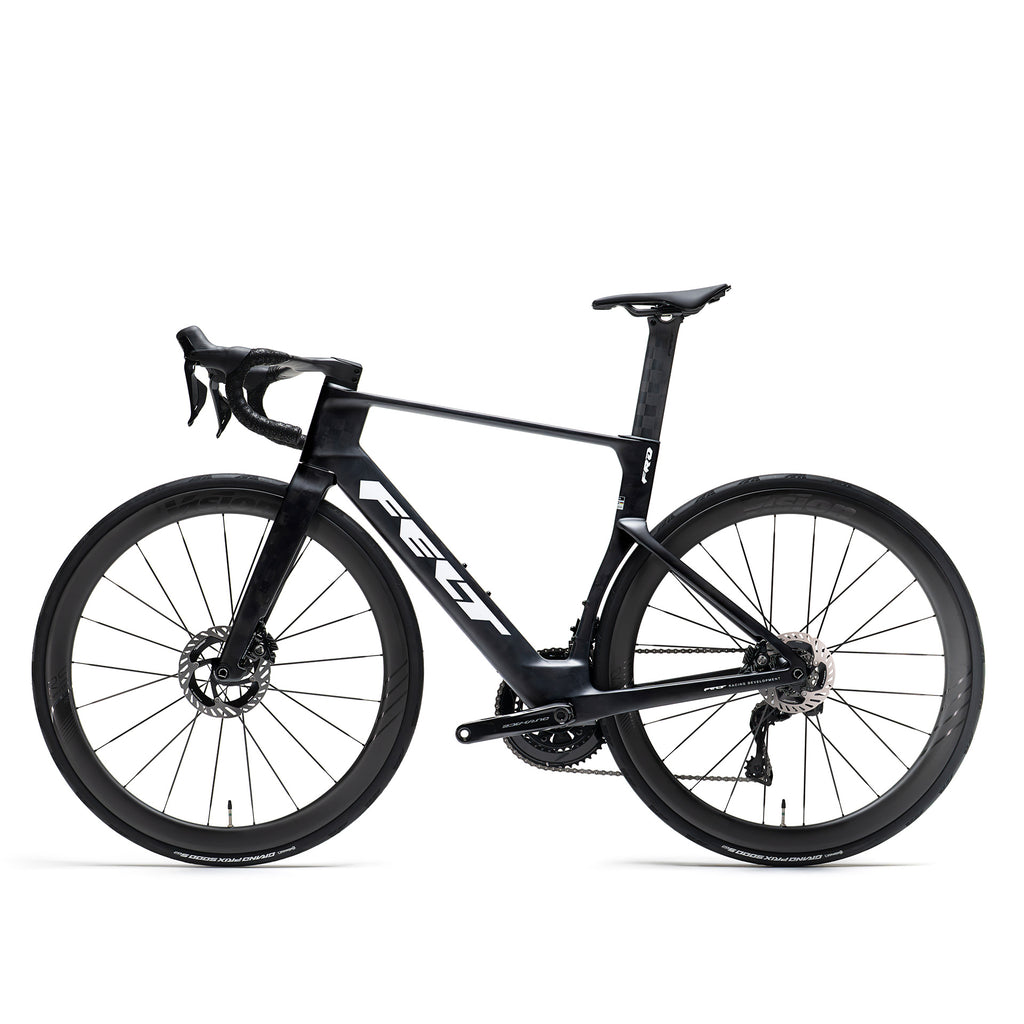

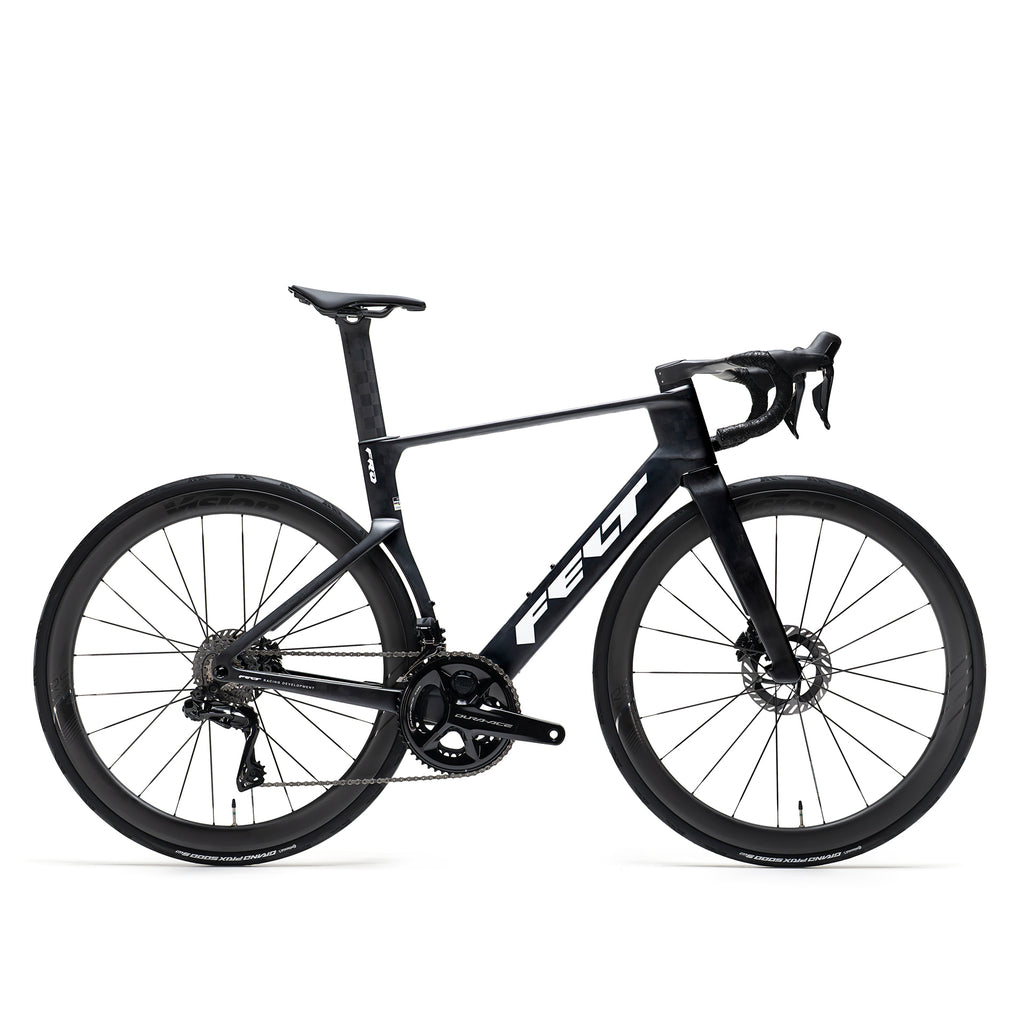

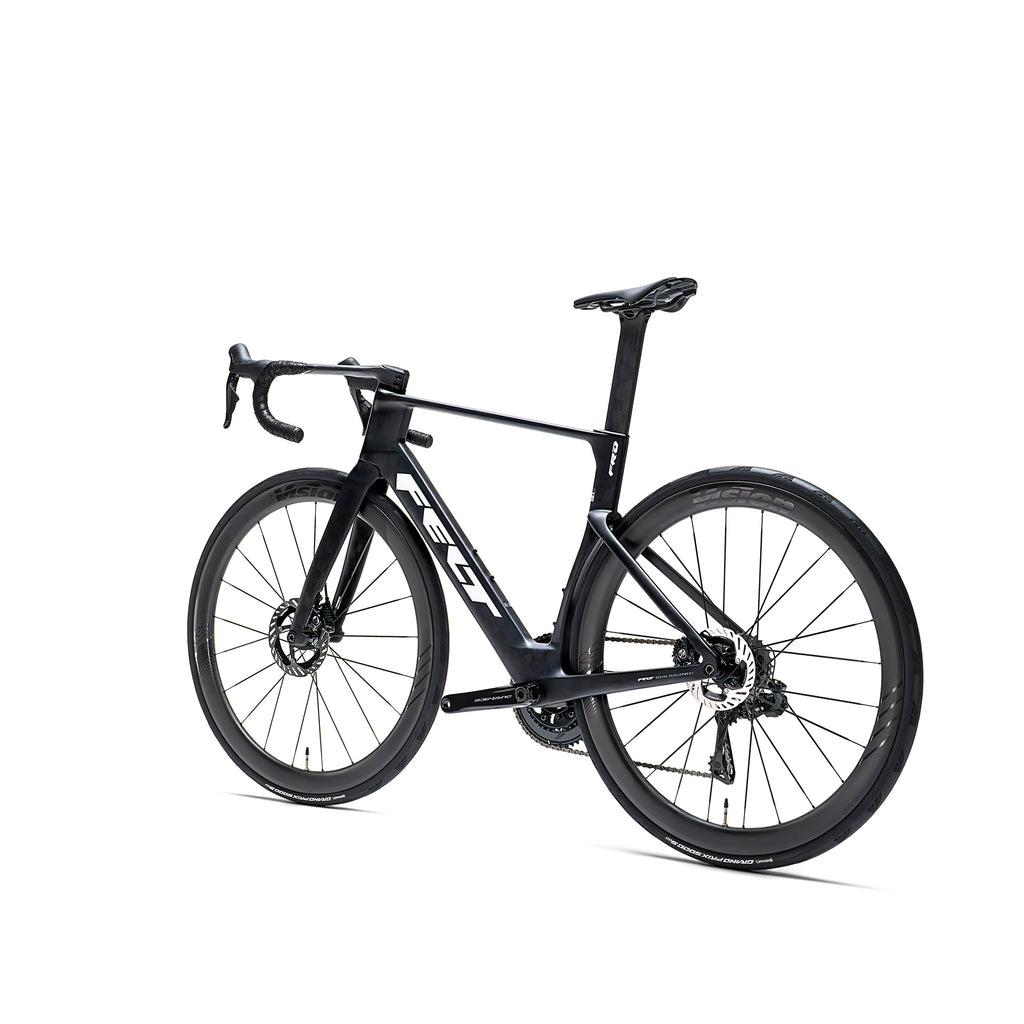

NEXAR | FRD SHIMANO DURA-ACE DI2
1/4

NEXAR | FRD SHIMANO DURA-ACE DI2

NEXAR competes at the highest level of CdA while deliberately balancing three defining pillars: AERO, WEIGHT, and FIT. Not maximized in a single dimension, but precisely optimized across all three: exactly how much to push AERO, how far to reduce WEIGHT and how to refine FIT. This is what makes NEXAR a new kind of aero bike. The fastest FELT we have ever built, engineered for real riders, real conditions and real speed. This is NEXAR. Aero as you’ve never FELT.

The FRD features our advanced 12K carbon construction, delivering an exceptional stiffness-to-weight ratio and elite aerodynamic efficiency.

Sizes
Color
Dealer Search

BUILT FOR THE 99%

With the launch of FELT’s new generation of aero bikes, we introduce the name NEXAR. A fusion of “Next” and “AR”, it marks FELT’s next evolution in aerodynamics performance. NEXAR represents a new era for FELT where aero no longer means compromise. Where an aero bike is designed not just for the strongest 1 percent of racers but engineered to work for the 99 percent of the performers on the market.

AERODYNAMICS

5% drag reduction versus previous AR model

FELT one-piece cockpit

≤300grams

HIGHER STACK

Specifications

FRAMESET

Frame
NEXAR - FRD 12K CARBON LIGHT FRAME

Fork
NEXAR - FRD 12K CARBON LIGHT FORK

────────

BRAKES & DRIVETRAIN

Front brake

SHIMANO DURA-ACE, BR-R9270, 2-PISTON, HYDRAULIC DISC BRAKE

Front brake rotor
SHIMANO RT-MT900, CENTER LOCK, 160 MM

Rear brake
SHIMANO DURA-ACE, BR-R9270, 2-PISTON, HYDRAULIC DISCBRAKE

Rear brake rotor
SHIMANO RT-MT900, CENTER LOCK, 140 MM

Rear derailleur
SHIMANO DURA-ACE DI2 RD-R9250, 2X12-SPEED

Front derailleur
SHIMANO DURA-ACE DI2, FDR250,

Cassette
SHIMANO DURA-ACE CS-R9200, 11-30T

Shift lever
SHIMANO DURA-ACE Di2, ST-R9270

Chain
SHIMANO CNM9100 - HG 12 SPEED

Crankset
SHIMANO DURA-ACE, FC-R9200, 52/36 T

Shift lever
SHIMANO DURA-ACE Di2, ST-R9270

Bottom Bracket
SHIMANO, BBR60

POWERMETER
4IIII NON-DRIVE SIDE PM

────────

WHEELS

Wheelset
METRON 45 RS CARBON

Tire
CONTINENTAL GRAND PRIX 5000 S TR, 700x28c

────────

COCKPIT

Cockpit
FELT ROAD 1 PIECE INTEGRATED COCKPIT
45 / 48: 360/400x90 CARBON
51 / 54/ 56: 380/400x100 CARBON
58 / 61: 400/440x110 CARBON

Saddle
Prologo Dimension NDR T4.0

Seat post
45 / 48 / 51: FELT NEXAR DEDICATED SP, 250 MM CARBON
54/ 56 / 58 / 61: FELT NEXAR DEDICATED SP, 330 MM CARBON

────────

ADDITIONAL INFORMATION

Bike Weight (Size M)
6.48kg

Permissible total weight
120 kg

Specifications may change depending on supply of parts to our factory. Please contact your local dealer for exact specifications of their stock.

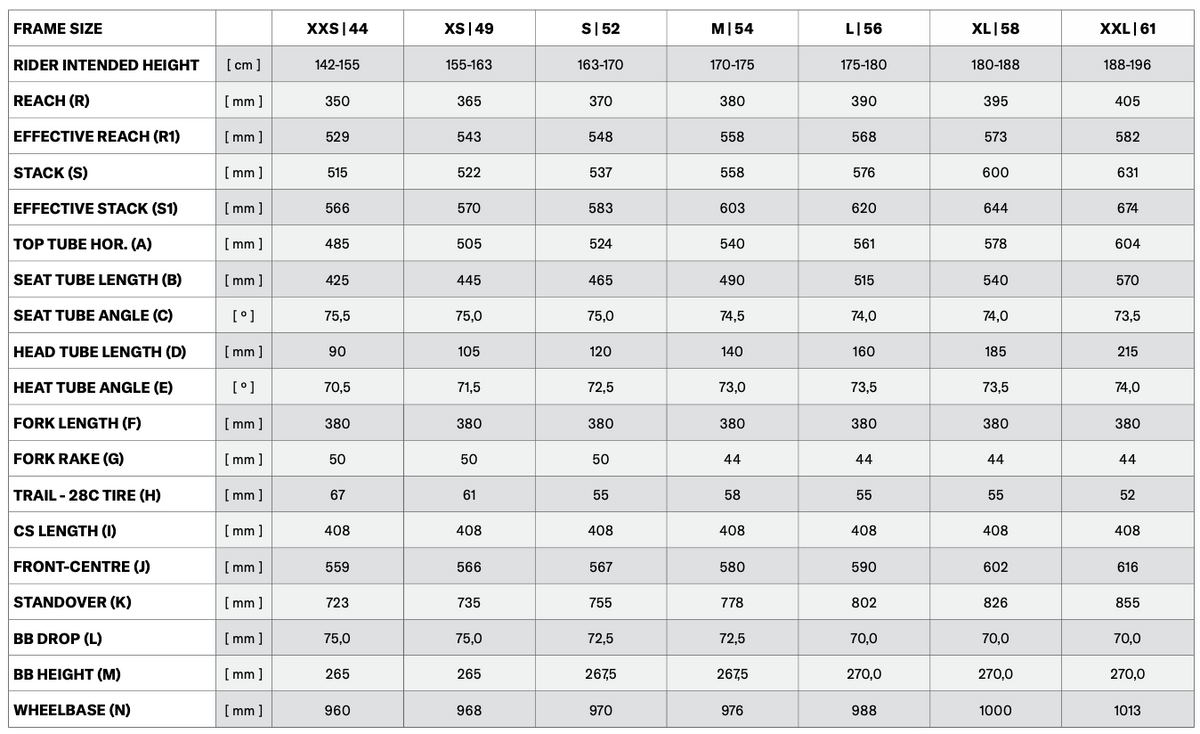

Geometry & Size Guide

NEXAR

AERO AS YOU'VE NEVER FELT
